Triple Buck Converter Module
A custom module arranging three independent adjustable buck-converter stages with accessible screw-terminal input and output connections.
Project status: Assembled. Category: Power Electronics.
Engineering challenge
Integrate three adjustable DC-DC conversion stages on one serviceable PCB while keeping their terminal connections clear and accessible.
Project constraints
- Three independent power stages
- Adjustable outputs
- Screw-terminal wiring
- Prototype-level performance evidence
Engineering approach
- Partitioned the board into three repeated conversion channels
- Placed inductors, controllers and terminals for clear channel separation
- Fabricated and assembled the custom module
Scope and deliverables
- Power-stage layout
- PCB routing
- Manufacturing preparation
- Prototype assembly
- Triple-channel PCB design
- Manufacturing package
- Assembled prototype module
- Photographic build evidence
Technology
- Buck converter
- Power PCB
- Screw terminals
- PCBA
Validation and outcome

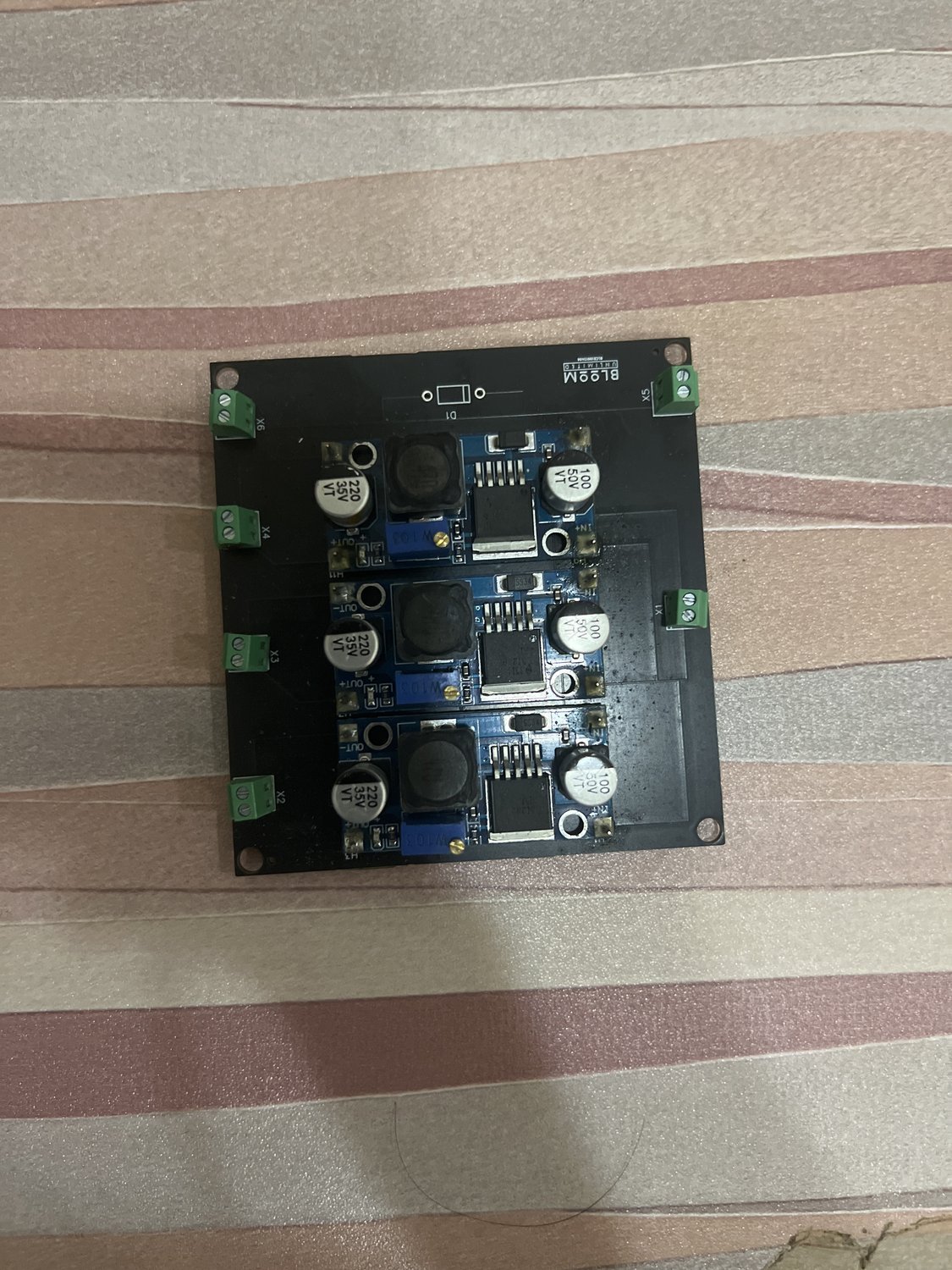

The assembled module is documented in a genuine project photograph. No efficiency, thermal, compliance or production qualification is claimed.
Three adjustable converter stages were integrated into one assembled board for further application-specific evaluation.
Limitations and confidentiality
- No published efficiency or thermal results
- No compliance certification
- Final ratings depend on the selected components and operating conditions
The application and customer-specific electrical requirements are not disclosed.
